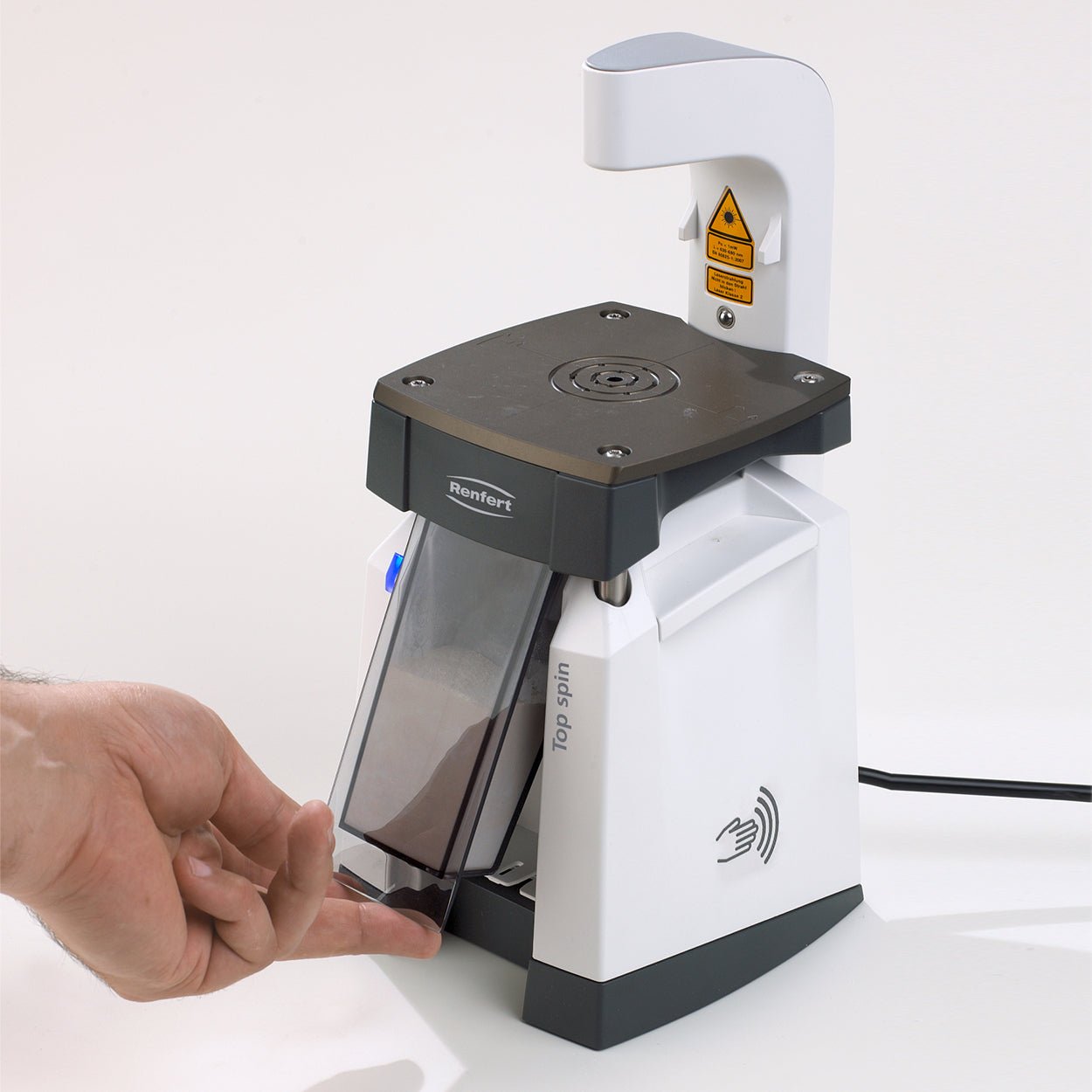

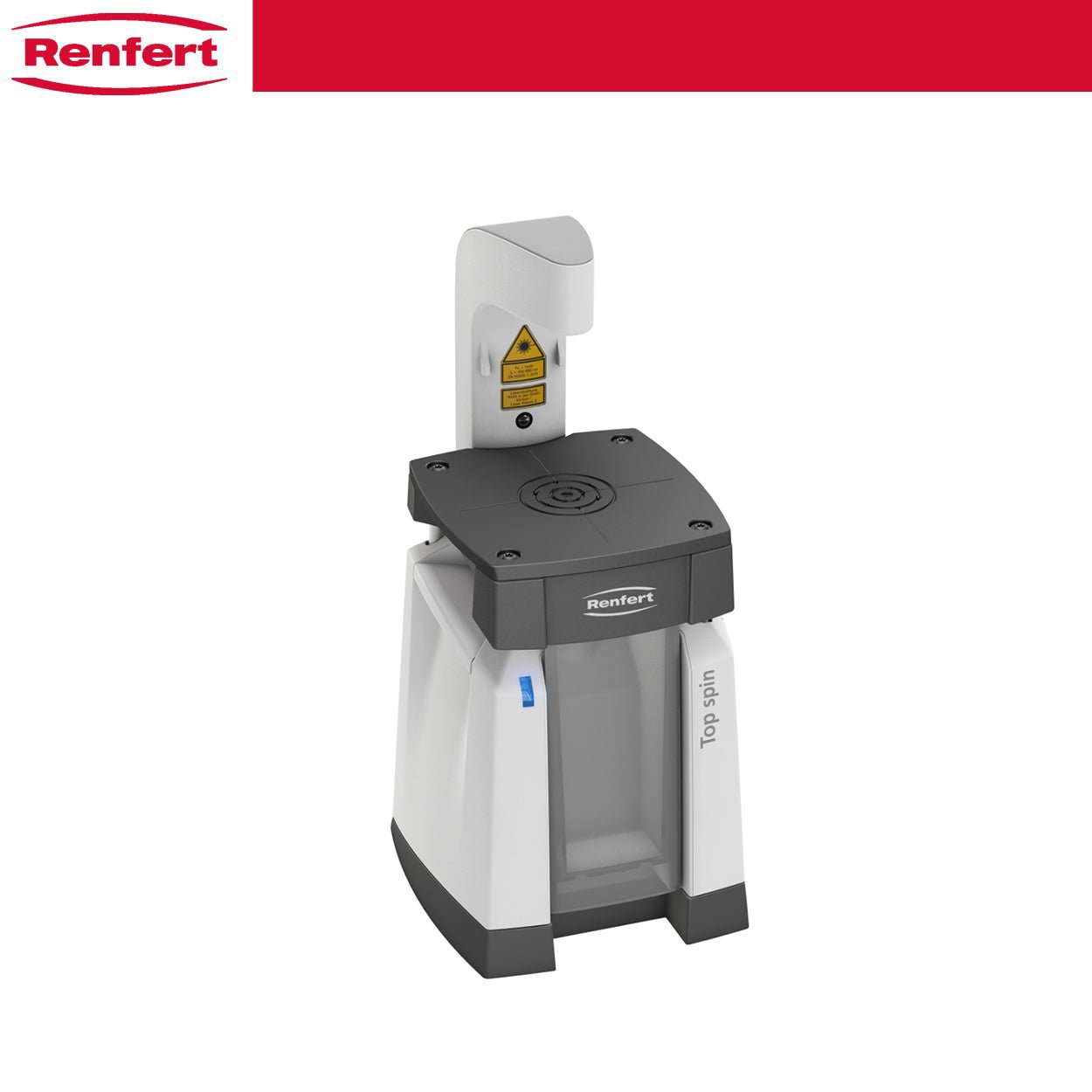

Top Spin Hole Opening Device - Pindex
The Top spin pin drilling unit offers additional precision, safety, and durability. Its exceptional concentric precision and special drill technology make it unique.
Advantages
- Drilling precision of ≤ 0.01 mm thanks to sophisticated shaft-bearing technology.
- High-torque motor with no power loss when drilling (8000 rpm).
- Extremely easy drilling with no resistance thanks to a special drill geometry.
Details

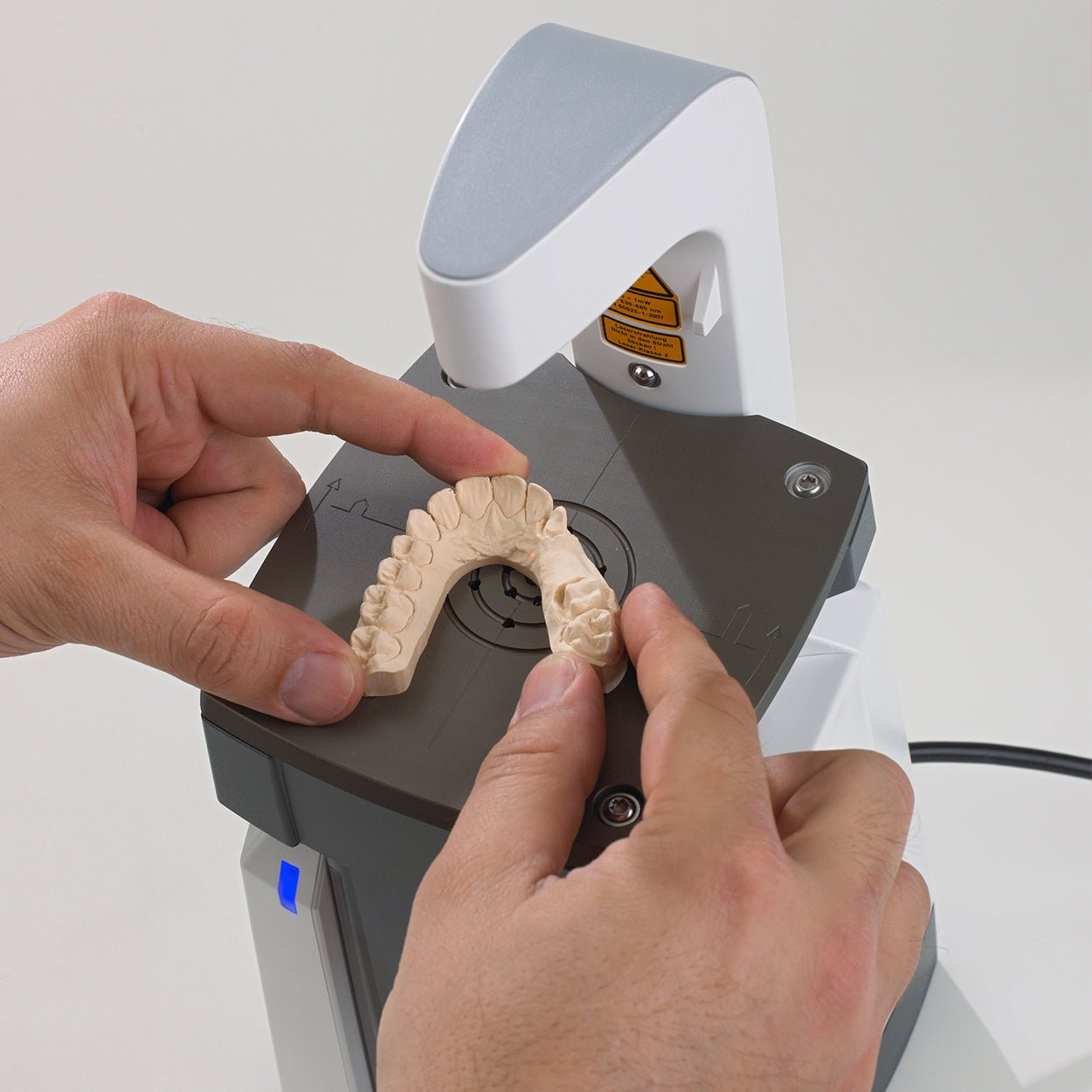

- Two unit positions and different gripping options for fixing the dental arch in position enable an individual, ergonomic working posture.
- The individual, infinitely variable drill-depth setting of 0–20 mm (0–0.79") also allows drilling for pin systems with resin plates.
- With adjustment it is also possible to use drills with a longer shaft.
- Compact design with a high degree of stability.
Techical Details
- Stock Code: 18400000
- Permissible main voltage: 100-240 V
- Permissible main frequency: 50-60 Hz
- Weight: 4 kg
- Dimensions: 153 x 330 x 175 mm
- Power Consumption: 12 W
- Laser Class: 2
