MaxCure 3 Polymerization Beam Filling Device

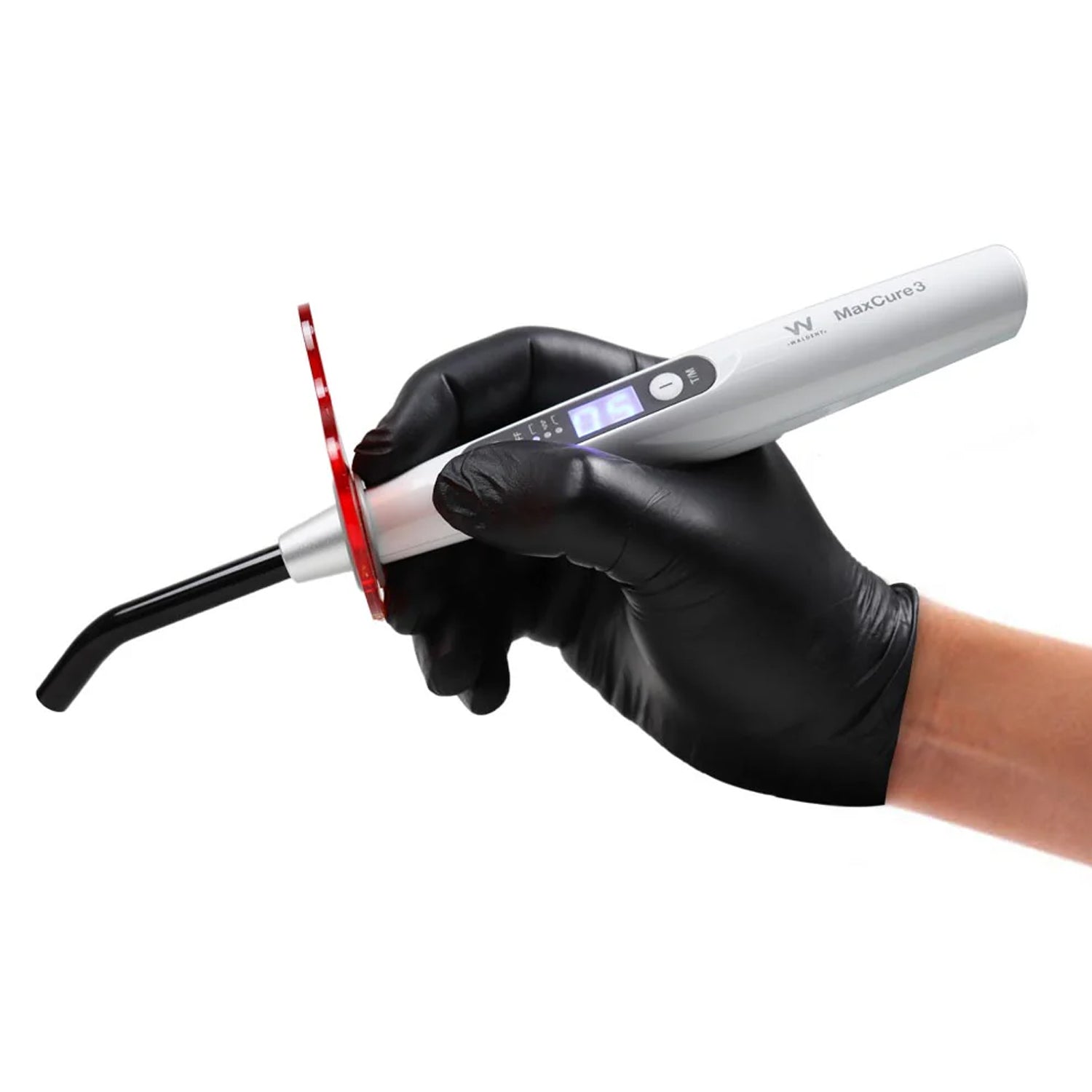

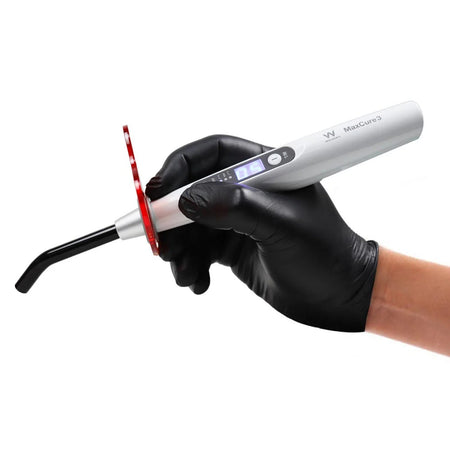

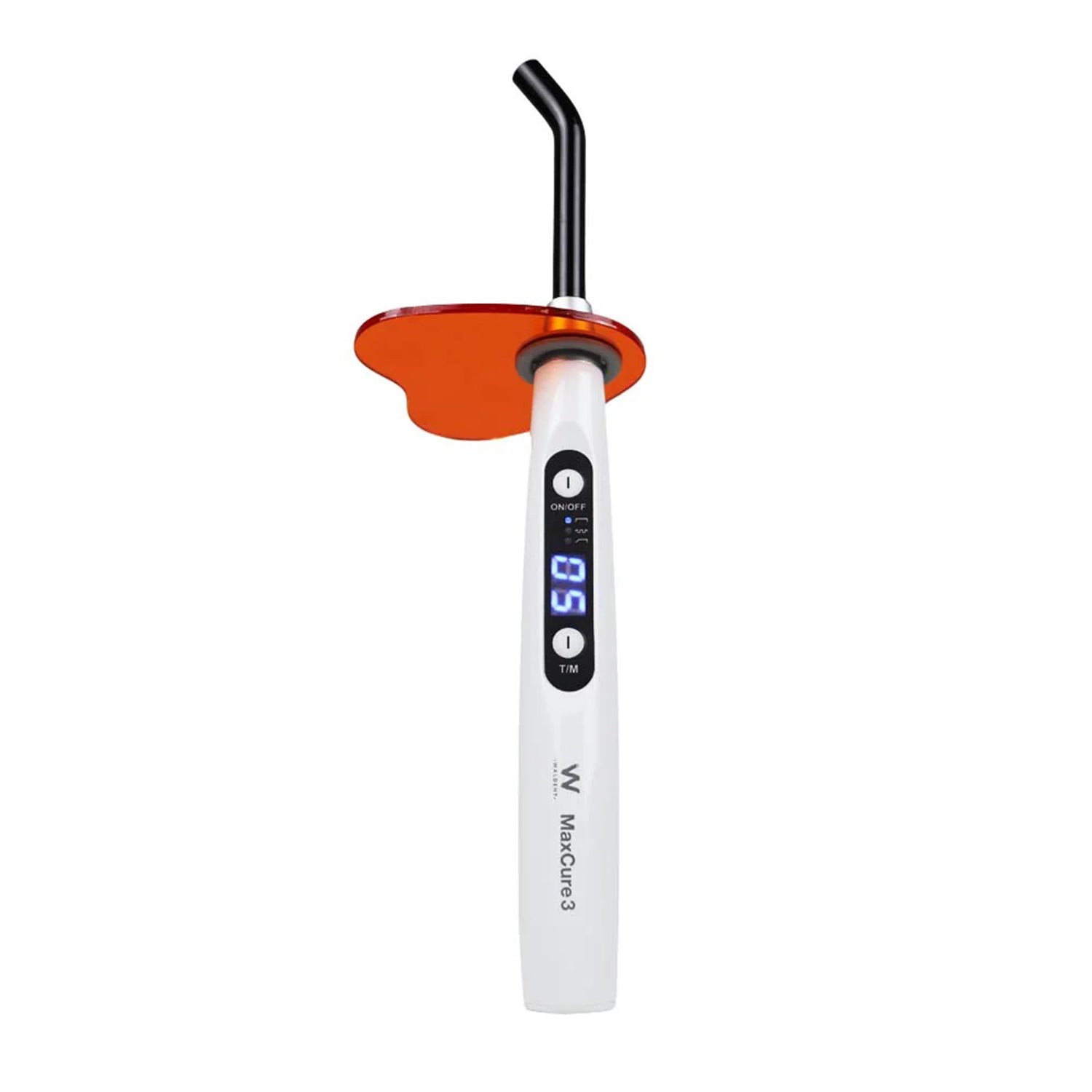

Dental LED Curing Light - MaxCure3 Model

This Dental LED curing light is designed to rapidly harden light-sensitive resins used in dental treatments. It is intended for use exclusively by trained and authorized dental professionals in hospitals and dental clinics. The light curing device utilizes the principle of light radiation to quickly cure light-sensitive resin, making it suitable for various dental restorations.

Key Technical Specifications:

Environmental Factors:

• Operating Temperature: 5°C - 40°C
• Humidity: 30% - 75% relative humidity
• Atmospheric Pressure: 70 - 106 kPa
• Transport and Storage Temperature: -20°C - +40°C
• Storage Humidity: 10% - 93% relative humidity

Curing Light Modes:

• FULL: For general applications
• PULSE: Designed for more precise procedures, aimed at reducing composite shrinkage
• RAMP: Gradually increases over the first 0-5 seconds for more controlled curing, designed for heat-sensitive patients

Curing Depth:

• FO Light Guide: 8 mm diameter
• Light Wavelength: 430 - 480 nm

Light Intensity:

• Full Mode: 1,200 mW/cm² ± 10%, duration options: 5, 10, 15, 20 seconds
• Pulse Mode: 0-1,200 mW/cm² ± 10%, duration options: 5, 10, 15, 20 seconds
• Ramp Mode: Gradually increases from 0-1,200 mW/cm² ± 10% over the first 5 seconds, then maintains 1,200 mW/cm² ± 10% for 5, 10, 15, 20 seconds

Battery: 800 mA

• Power Input: 100-240VAC, 50Hz/60Hz
• Power Output: 5V DC/1A

Package Contents:

• 1 x Light Cure Device
• 1 x Adapter
• 1 x Light Shield
• 1 x Optical Probe
• 1 x User Manual

The MaxCure3 model is a reliable device that provides high performance and flexibility for various dental treatment applications, ensuring efficient and effective curing of light-sensitive resins. Its diverse curing modes and adjustable light intensity make it an essential tool for dental professionals, supporting a range of treatment scenarios with precision and reliability.
