Parallel Implant Drill Guide - Parallel Implant Placement
Couldn't load pickup availability
PARALLEL DRILL GUIDE WITH PIN

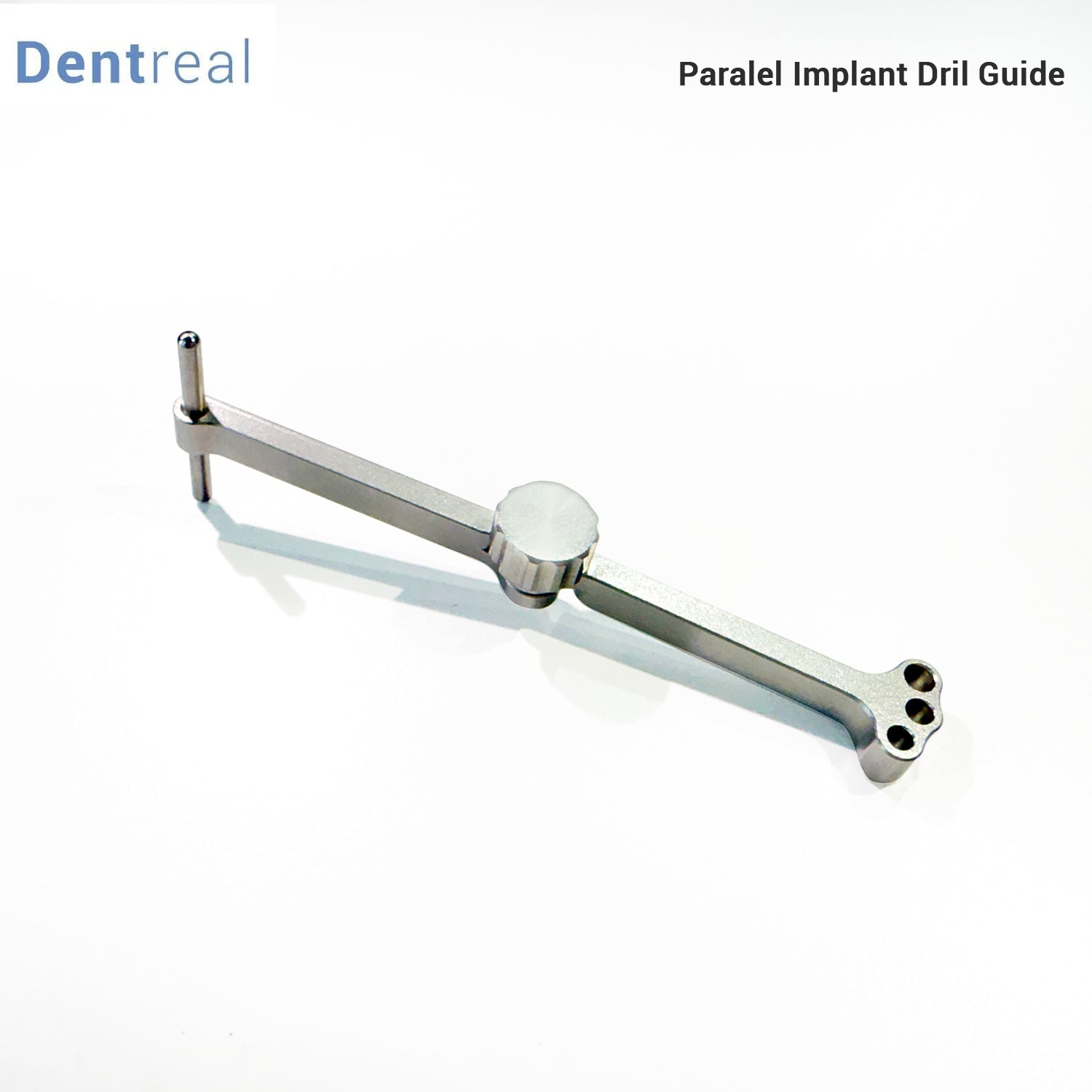

The paralleling guide is used to align 2 interforaminal implants to the median plane in the edentulous mandible. A hole is drilled in the middle of the mandible using a pilot drill that is easily aligned to the median plane. The distance to the middle can be accurately transferred to the opposite side by turning the attached paralleling guide.

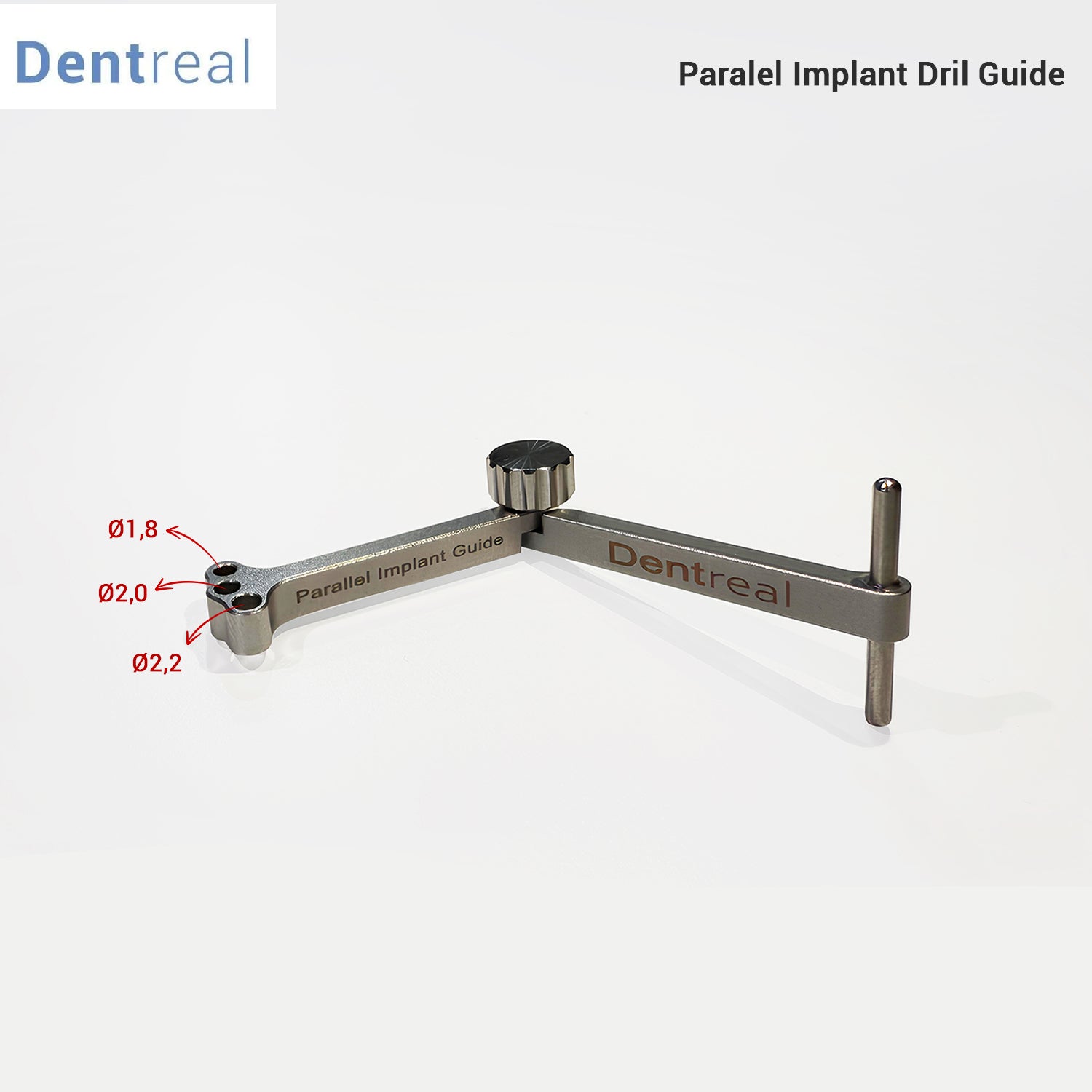

Parallel Drilling Guide for Easy Parallel Implant placement. (Diameter 2.1mm for Pilot Drill and 1.80mm size of Guide Pin). Insert the Parallel Drill Guide with the Guide Pin into the Primary Pilot Drill. With the flexible coupling a precise setting is possible for the Polit Drilling below.
Material Used: Stainless Steel
Impla Parallel Implantology Drill Guide
**Can be used for any implant system
**Parallel-reciprocal implant alignment
**Wide choice of horizontal implant positions according to surgical aspects
**Operation time is reduced
**Prosthetic result is optimized
**Autoclavable
