Ai Ray Portable Dental X-Ray Device - Black

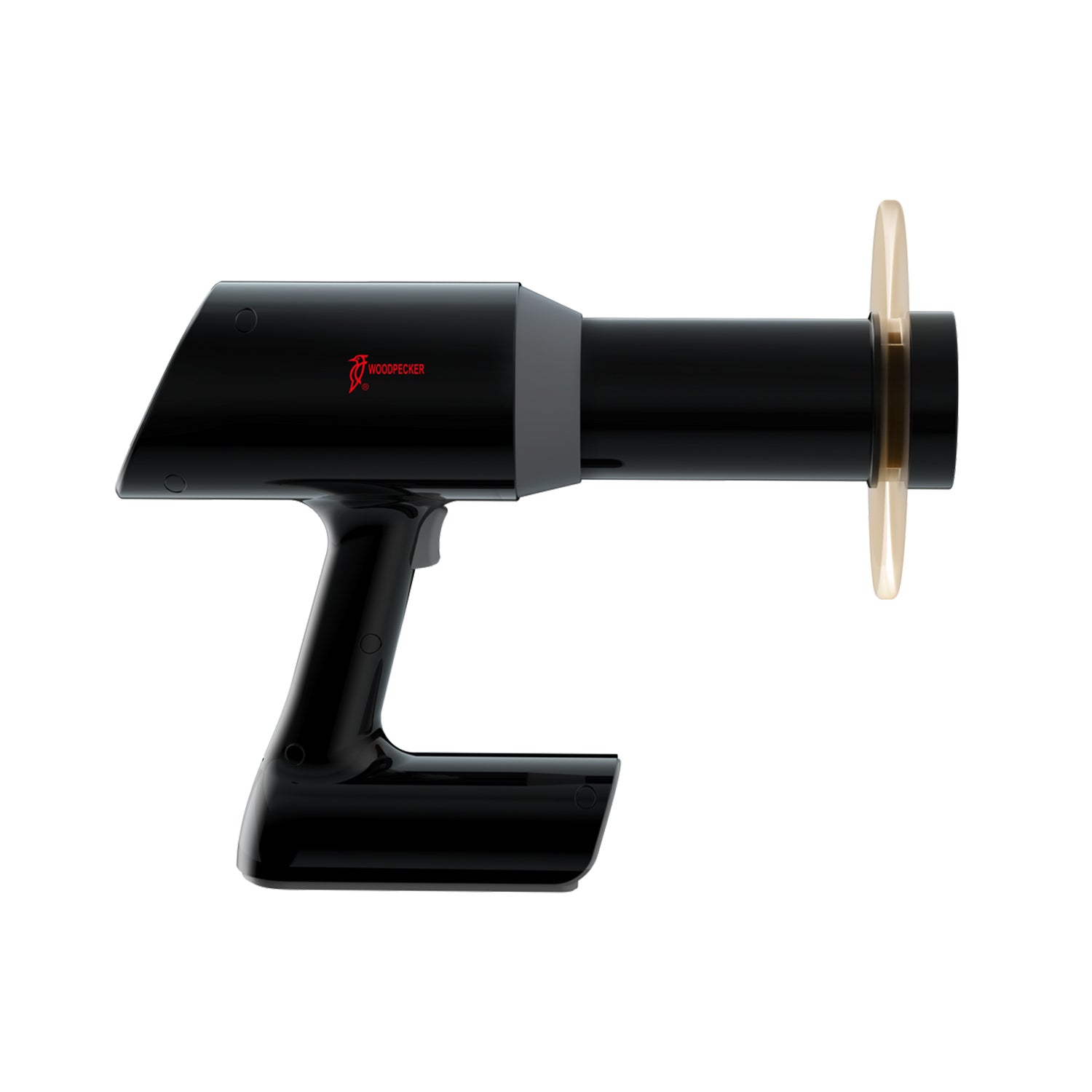

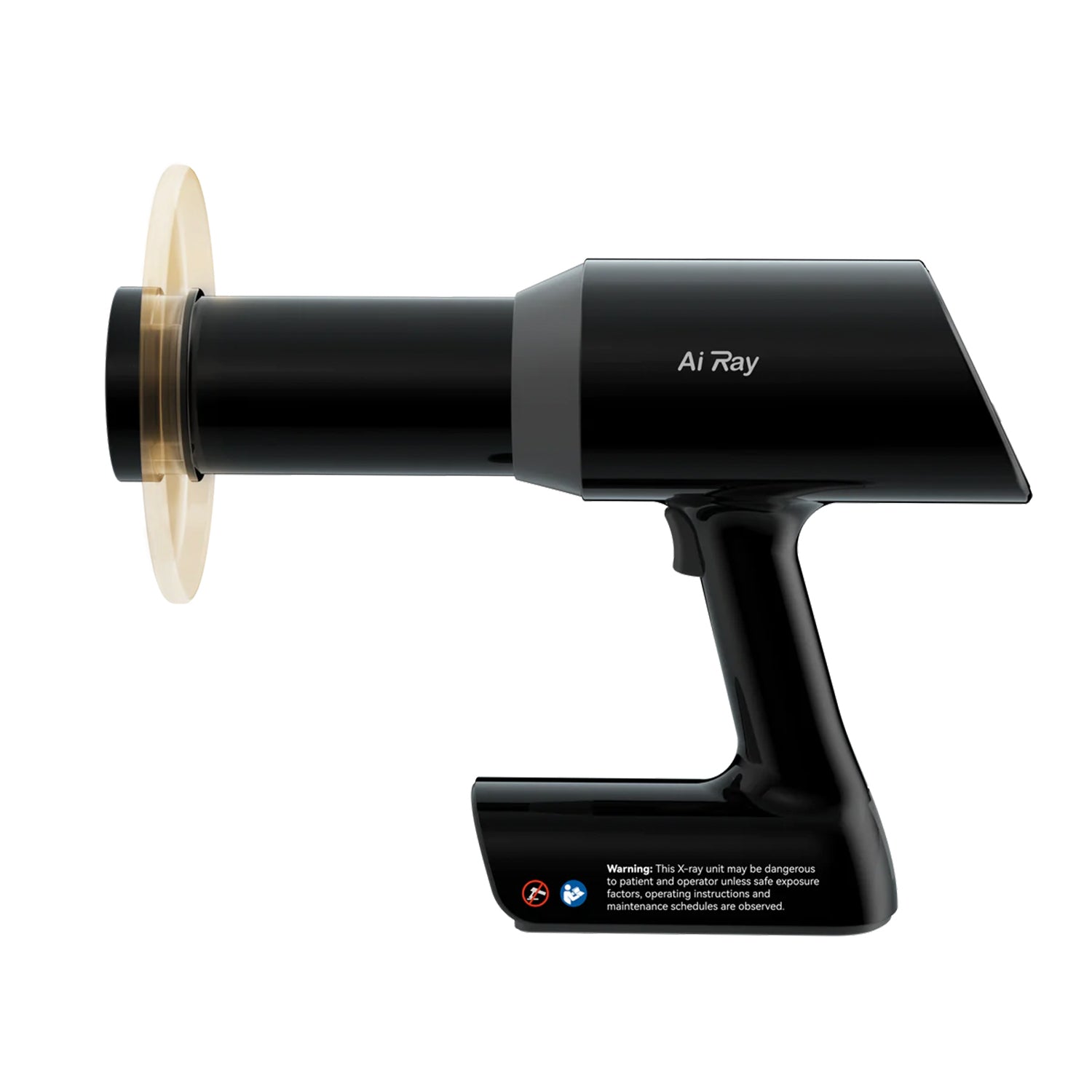

Woodpecker Ai Ray Portable X-Ray Machine

The Woodpecker Ai Ray Portable X-Ray machine is designed to capture high-quality X-ray images of teeth, providing dental professionals with a reliable and efficient imaging device. Its compact and portable design allows for flexibility in various clinical settings.

Key Features:

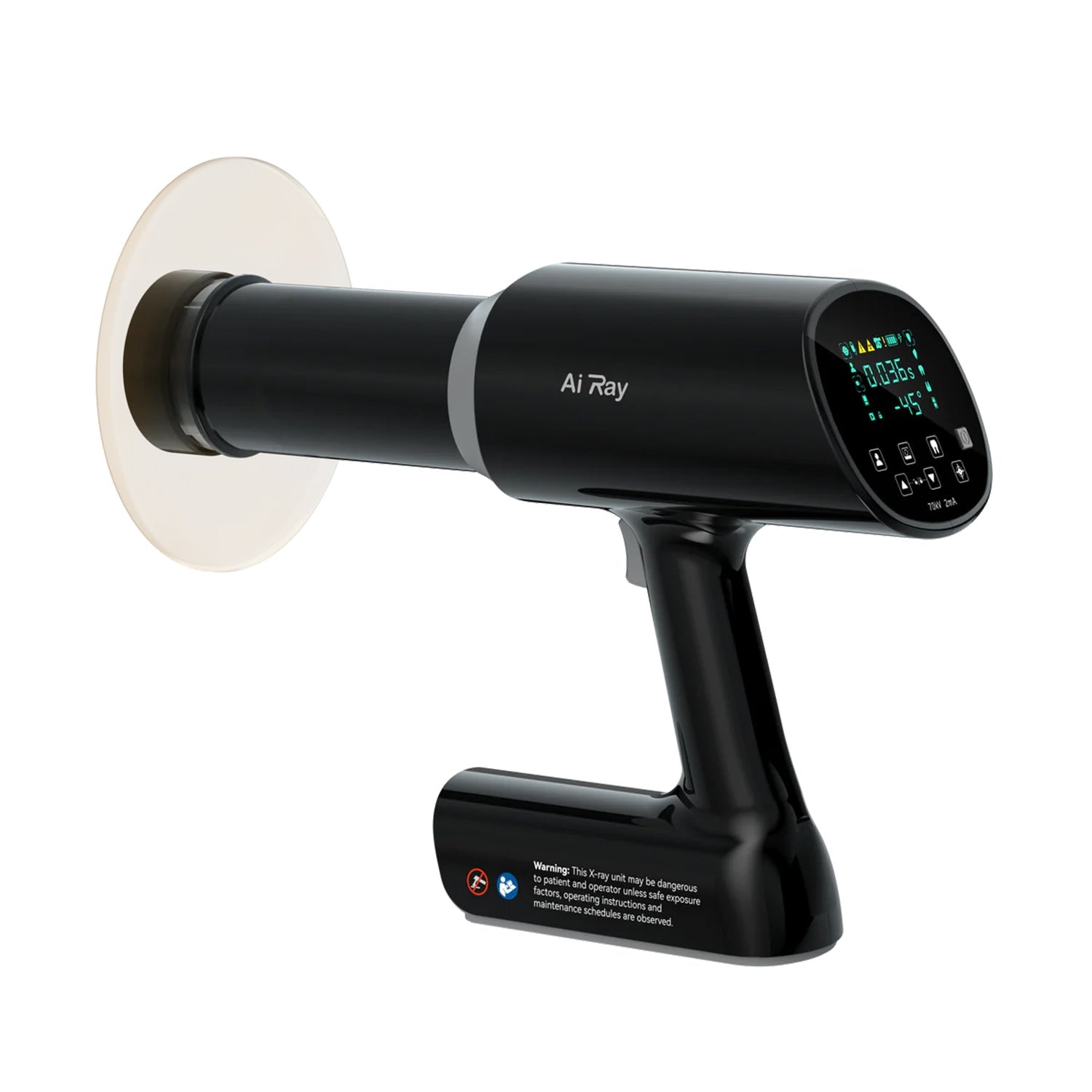

• User-Friendly: The intuitive control panel and interface simplify navigation, setting selection, and precise image capture.
• Clinical Advantages:
  • High efficiency in delivering high-quality images.
  • Non-invasive diagnostic imaging ensures patient safety with minimal radiation exposure.
  • Compatible with all X-ray types, including IOPA Film and RVG.

Superior Performance:

• High Efficiency:
  • Up to 210W emission power.
  • Shorter exposure times with higher power.
  • Stable, accurate, and fast image capture in different tooth positions.

Various Image Capture Methods:

• Compatibility:
  • Internal remote control receiver circuit and holder interface, compatible with wired remote control and triangular holder.
  • Various image capture methods for safer and easier procedures.

Detailed Dental Films:

• High-Quality Images:
  • 0.4mm focal spot X-Ray provides high-quality and clearer images for various diagnostic needs.

High-Capacity Battery:

• Long-Lasting:
  • 15000mAh high-capacity lithium battery.
  • Can capture over 1500 dental films on a full charge.
  • Full charge in 4 hours.

Product Specifications:

• Size: 114mm × 363.8mm × 245.6mm
• Weight: 2.4kg
• Battery Specifications: 10.8V / 2450~15000mAh

Operating Environment:

• Temperature: 10°C ~ 40°C
• Relative Humidity: 30% ~ 75%
• Atmospheric Pressure: 70kPa ~ 106kPa

Transportation and Storage Conditions:

• Storage Temperature: -20°C ~ 55°C
• Transportation Temperature: -20°C ~ 55°C
• Relative Humidity: 10% ~ 93%
• Atmospheric Pressure: 70kPa ~ 106kPa

Ai Ray Technical Information:

• Power Adapter Input: 100-240V 50/60Hz 1.54
• Internal Power Supply: DC 10.8V
• Radiation Types: X-Ray
• Electrical Power:
  • Maximum Power: 0.21 kW (70kV, 3mA, 0.1s)
  • Nominal Electrical Power: 0.21 kW (70kV, 3mA, 0.1s)
• Tube Voltage: Fixed output at 70kV, error ±10%
• Tube Current: Fixed output at 3mA, error ±20%
• Loading Time: Adjustable exposure loading time in the range of 0.02s ~ 2s, class adjustable, selected according to class R'10 number system; deviation ±(10%+1ms)

X-Ray Details:

• Model: D-045
• Focal Spot: 0.4mm
• Target Angle: 12.5°
• Total Filtration: 1.5mmAl/70kV
• Additional Filtration: 0.5mmAl/70kV
• Distance from Focal Spot to Skin: 20cm
• Output Radiation Field: Φ6cm ± 0.6cm
